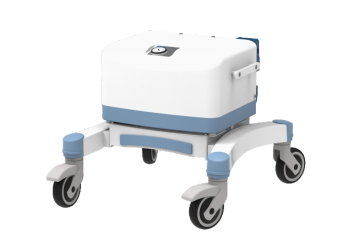

The PN-3000 medical air compressor adopts a medical gas system composed of GAST&THOMAS oil-free vacuum pump, SMC , NORGREN pneumatic components, and ORIENTAL MOTOR sirocco fan.

Performance Characteristics

1.Oil-free compressor core and multi-stage air filtration, dehydration, and cooling system design can ensure that the output gas meets the requirements;

2.Refrigeration refrigeration system, the whole machine has low operating noise;

3.Automatic drainage device combined with regular drainage double-layer separation technology;

4.Large synchronous output flow, for two devices simultaneously used;

5.Start the protection and release function, and then it will not be stuck;

6.Applicable to: ventilator, anesthesia machine, automatic ventilator, air-oxygen mixer, CPAP, baby resuscitator, etc.

Technical Parameter

Product Model:                                    PN-3000

Output Pressure:                                  0.25MPa~0.4MPa

Output Flow:                                         60L/min

Exhaust Pressure:                                 ≥ 0.7MPa

Start Mode:                                         Start with pressure, Start pressure ﹥ 0.5MPa

Protection Function:                            High temperature and overheat protection function

Noise:                                                  ≤ 55dB(A)

Pressure Display:                                 Pressure Gauge

Timer:                                                 0~9999H

Power Supply:                                     ac 220V 50Hz

Power:                                                500VA

Volume:                                              W580mm × D580mm × H490mm

Security:                                             GB9706.1
